Fumes sucked by the blower fan electrostatic oil purifier which is part of the marriage, the larger the oil droplets and oil particles in the temporal current board due to mechanical collision, retention was close and into the high voltage electrostatic field, in the high voltage field, smoke gas, oil mist charged, most can be degraded carbonization; the role of a few small oil particles in electric field of electric field and flow to the adsorption of positive and negative plates moving electric field were collected at the plate and in the gravity down pan is discharged through the oil drain passage, micron oil mist remaining field degraded into carbon dioxide and water, eventually discharged clean air; at the same time the high voltage generator under the action of air to generate ozone field, remove most of the smell of smoke.

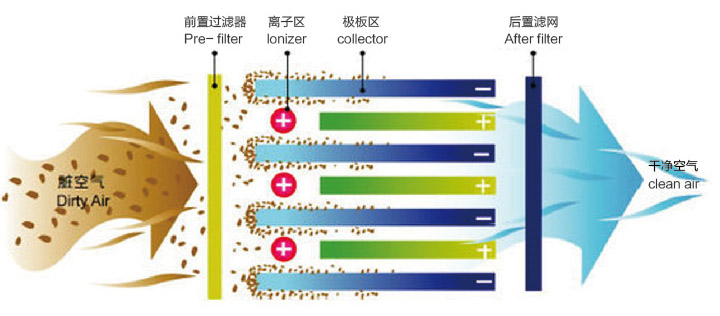

   The use of mechanical purification and electrostatic purification dual role. The smoke exhaust fan is with the suction pipe, first enter the primary purification chamber by rectifying device, gravity purification technology, the special structure of indoor pollutants gradually to the large particle size grading physical separation, and balanced rectification. The separated large oil droplets flow into the oil tank under the action of gravity. The remaining small pollutants into the secondary device of high voltage electrostatic field, electrostatic field in two parts, the first level is the ionizer, strong electric field to charged particles, as charged particles, these charged particles reach level second immediately after the dust collecting electrode adsorption, and partial carbonization. At the same time, the high voltage electrostatic field can effectively degrade the harmful components, play the role of disinfection and deodorization. Finally, through the filter screen, clean air out of the room.


Four, maintenance of economic benefits: purification technology is reliable and stable, just turn on the power supply, you can work normally, operation and maintenance costs are very low.


Five, investment costs: 3000 air volume of a single set of equipment requires only $2800, the cost is very small, household, commercial use.


Six, other: simple installation, small footprint.


Seven, the scope of application: all kinds of home, business hotels, hotels and a variety of cooking places.

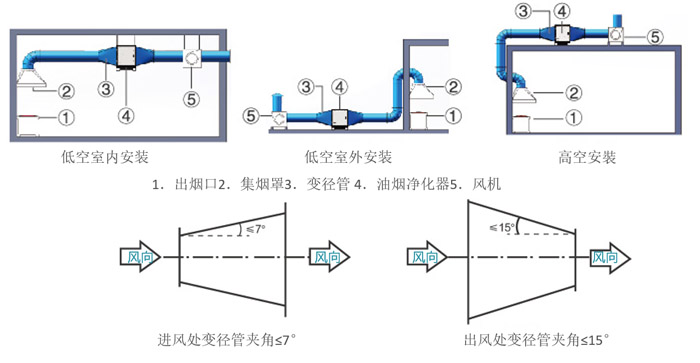

Eight, installation diagram
